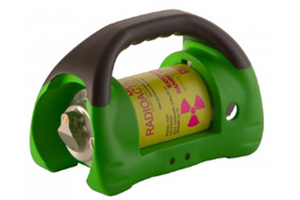

SENTINEL TM Model 1075 SCARPro source projector is used for industrial non-destructive testing applications of gamma radiography with Selenium-75. SCARPro can be used as a category I or II exposure device. When used in SCAR mode (category I), the SCARPro allows radiography to be performed in congested work areas with a minimal distance to the controlled areas. When used as a traditional projector (category II), standard SENTINELTM source guide tubes and collimators allow the Selenium-75 source to be used for axial, radial and panoramic exposures.

Download Brochure

Key Features

  • Exposure Device - Model 1075 SCARPro is a dual mode radiographic exposure device for Small Controlled Area Radiography and traditional projection radiography.
  • SCAR - An interchangeable collimator with a 90º incremental adjustment enables safe radiography in areas congested with workers.
  • Projector - A standard guide tube attachment with an ISO compliant interlock enables traditional axial and radial projection radiography.
  • Interchangeable front end plate interface – A standard guide tube port can be changed to a SCAR collimator quickly and safely in the field. Dose rate do not elevate during attachment and removal of Sentinel source guide tubes.
  • Control Interface – The source is automatically secured when fully retracted into the device’s fully shielded position. Disconnection of the remote control is prevented unless the source assembly is fully secured and shielded.
  • Field mode changeable.
  • Compact ergonomic jacket.
  • Tungsten Shield.
  • ISO 3999 Compliant
  • Utilizes standard 880 series controls & guide tubes
