Technology Design specialises in the design, development and manufacture of state-of-the-art Ultrasonic data acquisition systems. It also combine Phased Array, ToFD and Pulse Echo into a convenient and powerful range of instruments. These are designed to suit the widest spread of applications and are supplied worldwide.

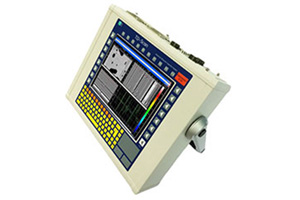

The TD Focus-Scan is our flagship multi-function ultrasonic inspection system. Designed and manufactured by Technology Design to the most exacting international standards, the system is designed to seamlessly perform multi-channel Phased Array, Time-of-Flight-Diffraction (ToFD), Pulse Echo, Corrosion Mapping and ASME compliant Girth/Seam weld examinations in every area of engineering endeavor.
Download BrochureKey Features
- Portable yet Powerful
- Extensive Analysis Tools
- Powerful Reporting Functions
- On-board 2-axis Drive Motor Control
- Import Phased Array Setups from ES BeamTool®
- User Replaceable Batteries (hot swappable)
- Up to 64/128 Phased Array
- x 16 Conventional Channels
- 2 Axis Encoder, video Tracking
- Simultaneous PA, ToFD and/or PE data collection
- 128GB SSD Storage
Techniques
- Phased Array
- TOFD
- Pulse Echo
- Corrosion Mapping
- Weld Zone Discrimination
Applications
- Pressure Vessels Welds
- Pipeline Welds
- Structural Welds
- Forgings & Castings
- Turbine Disks & Blades
- Aircraft Components
- Complex Geometries
- Hydrogen Damage Surveys
- Corrosion Surveys
