Technology Design specialises in the design, development and manufacture of state-of-the-art Ultrasonic data acquisition systems. It also combine Phased Array, ToFD and Pulse Echo into a convenient and powerful range of instruments. These are designed to suit the widest spread of applications and are supplied worldwide.

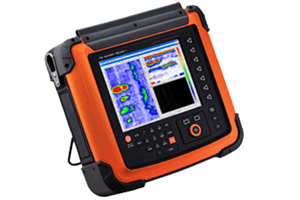

The TD Handy-ScanRX is the new hand held multi-function advanced ultrasonic system.

The TD Handy-ScanRX was born out of the demand for an inexpensive ultrasonic system that delivers Phased Array, ToFD and Pulse Echo, Corrosion Mapping and Weld Zone Discrimination in a single integrated portable package.

Download Brochure

Key Features

  • Phased Array
  • Highly Portable
  • Sunlight Readable Screen
  • Extensive Analysis Tools
  • Powerful Reporting Functions
  • Removable Battery
  • 2 Axis Encoder; Video tracking
  • Import setups from ESBeamTool®
  • x 8 Conventional Channels
  • 32/64 Phased Array
  • Simultaneous PA, ToFD and/or PE data collection
  • 128GB SSD storage

Techniques

  • Phased Array
  • TOFD
  • Pulse Echo
  • Corrosion Mapping
  • Weld Zone Discrimination

Applications

  • Pressure Vessels Welds
  • Pipeline Welds
  • Corrosion Surveys
  • Turbine Disks & Blades
  • Complex Geometries
  • Forgings & Castings
  • Aircraft Components
  • Hydrogen Damage Surveys
